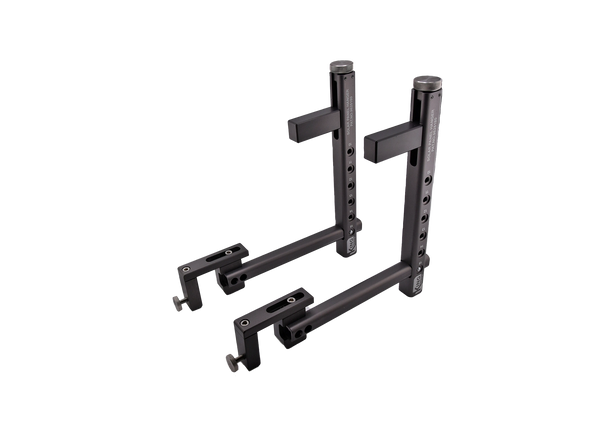

THE SOLAR PANEL HANGER

Solar panel hangers used to assist with the mounting, wiring, and staging of solar panels on a roof.
Tool reconfigured in the mounting position. Stage solar panels near your installation point
Cantilever adjustment of your choice both portrait and landscape, along with micro corrections
Thumb screw on front of hanger used to secure tool to racking. Foot ensures tools is not overloaded
Universal foot allows for easy adjustment to fit any major brand of racking
Adjust hanger in 2 inch increments to get your desired overhang
Twist knob at end of tool to move foot in small increments to get your panel square
Stack solar panels near the point of installation to keep the rooftop organized & panels accessible

STAGING

MOUNTING + WIRING

MOUNTING + WIRING

 Establishes a designated area for installers to stack panels on the solar racking systematically.

Solar Panel Hanger used by one installer to complete wire management and mounting of solar module

MOUNTING + WIRING

MOUNTING + WIRING

MOUNTING + WIRING

Serves to secure the solar panel in place during the wiring, straightening, and fastening process by one installer.

Universal foot allows hanger to adapt to a variety of racking manufacturers and rail types

UNIVERSAL FOOT

MOUNTING + WIRING

UNIVERSAL FOOT

Adjustable foot suits various types of solar racking systems.

Crafted out of the challenges encountered during the routine installation of solar modules, the Solar Panel Hanger serves to facilitate the staging, wiring, and installation of solar panels, particular beneficial for projects on inclining roofs.


BENEFITS


Speed Installation Time

This system enables a single installer to efficiently set up solar panels. In scenarios involving two or more installers, one can focus on staging panels while the other handles wiring and mounting tasks.


Organized Work Environment

Consolidating the placement of solar panels in a designated area enhances the walking space and diminishes potential trip hazards.


Reduces Physical Strain

Installing solar panels involves holding them in position during wiring and mounting, especially on angled roofs, which can be physically demanding. The Solar Panel Hanger alleviates this strain by handling the majority of the task for you.


Improve Accuracy

Eliminate human error when aligning the first row of modules. No more guesswork and the need for constant adjustments or worse yet, having to start over when the first row isn't straight.


Safer Installation

Particularly beneficial in steep pitched roof and wet/snowy conditions. The panel hanger replaces the need for an installer to be put in dangerous situations to hold a panel in place.



SPECIFICATIONS

Universal Jaw: Rack Width Range:

0.75"-1.625" with 0.040" increments


Cantilever: Adjustable for portrait or landscape from 10"-15" overhang*


Macro Adjustment Range:

9.5"-12.5" in 1" increments


Micro Adjustment Range:

1.5" in continuous increments


Weight Capacity (per set):

Mounting position: 60 lbs.

Staging position: 200 lbs.


Max Panels Staging: 6 panels


Field Tested On: IronRidge XLR 10/100/1,000, Quick Mount PV (standard/light), SnapNrack, SunModo


United States Patent:

#US 9,625,180


*Adapter available to accommodate 15"-20" overhang

available accessories

Replaces the universal feet of the solar panel hanger for those that exclusively use IronRidge

IronRidge Reversible Feet

Optional accessory for those that consistently use IronRidge rail. Compatible with XLR, XR10, XR100, XR1,000.

Reversible to accommodate use with rounded corner facing either direction.

The XL extension is an optional accessory to increase the cantilever above the tools standard 15"

XL Extension

Optional accessory to increase cantilever above

the tools 15" max overhang capability.


Provides range of 15"-20" for 72 cell modules.
